String Magnets

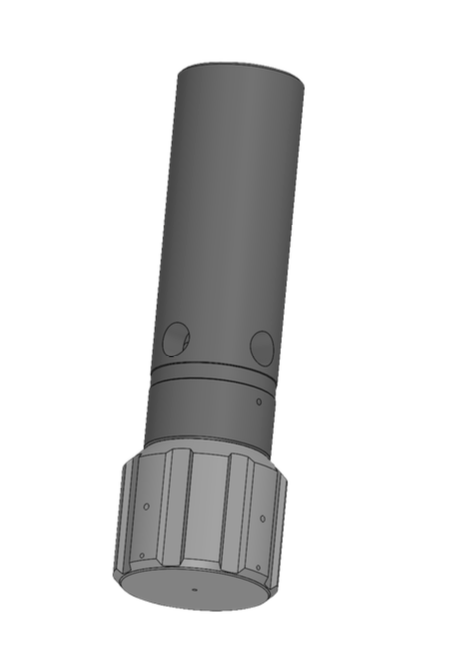

Model FM 128L
Flat bottom fishing magnet for pipe
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD, inch: 8.3 | Body material: AISI 4145 | Connection: NC 50 box |
| Min ID, inch: N/A | Tensile Yield strength, lbs: 1 280 000 | Circulating ports, ea x Ø mm: 4x45 |
| Fish neck OD, inch: 6 3/8 | mt: 581 | Max rotation, rpm: Do not rotate with WOB |
| Length, mm: 678 | Sour service resistant: No | Full face lifting capacity, kg: Up to 1600 |
| Weight, kg: 96 | Point (Ø2”) lifting capacity, kg: Up to 300 | |
| Rec’d make-up torque, ft-lbs: 27 000 |
