String Magnets

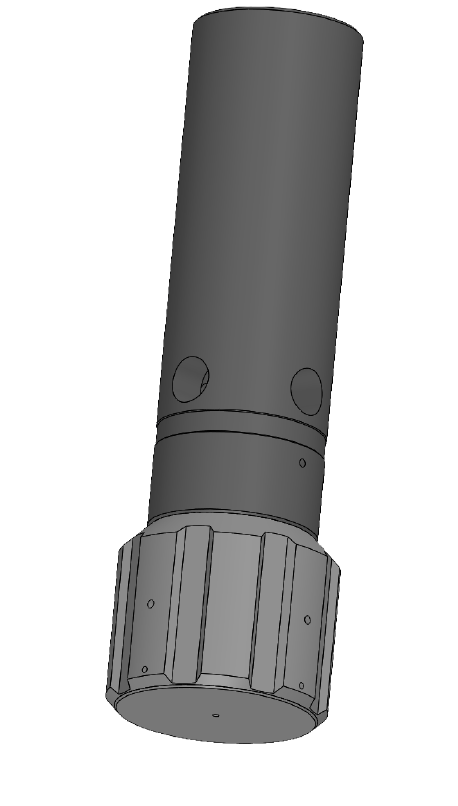

Model FM 128
Flat bottom fishing magnet for pipe.
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 8.3 | Body material: AISI 4145 | Connection: NC 50 box |
| Min ID (inch): N/A | Tensile yield strength (lbs): 1400000 | Circulating ports (ea x Ø mm): 4x45 |
| Fish neck OD (inch): 6 3/8 | Tensile yield strength (mt): 636 | Max rotation (rpm): Do not rotate with WOB |
| Length (mm): 784 | Sour service resistant: No | Full face lifting capacity (kg): Up to 1100 |
| Weight (kg): 120 | Point lifting capacity (kg): Up to 200 | |
| Rec’d make-up torque (ft-lbs): 27000 |
