String Magnets

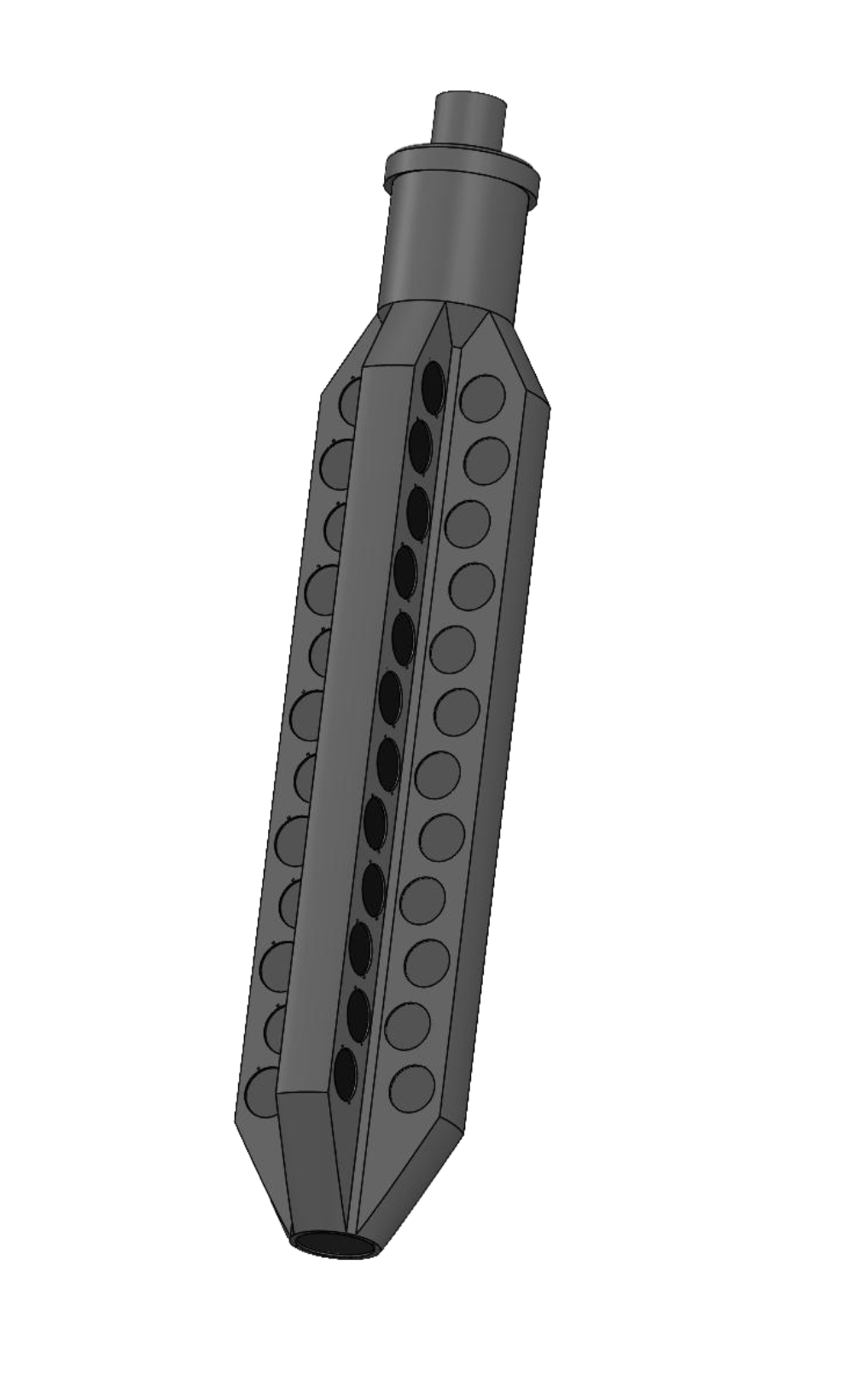

Model FMXW 35
Can be shielded for transportation by helicopter .
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 3.50 | Body material: 4145 H mod | Connection: 1-1/16” SR pin |
| Min ID (inch): N/A | Tensile yield strength (lbs): 87000 | Lifting capacity nose magnet (kg): Up to 40 |
| Roller wheels OD (inch): N/A | Tensile yield strength (mt): 39 | |
| Fish neck OD (inch): 2.31 | Sour service resistant: No | |
| Length (mm): 430 | Magnet ribs (ea): 4 | |
| Weight (kg): 9.8 |
