String Magnets

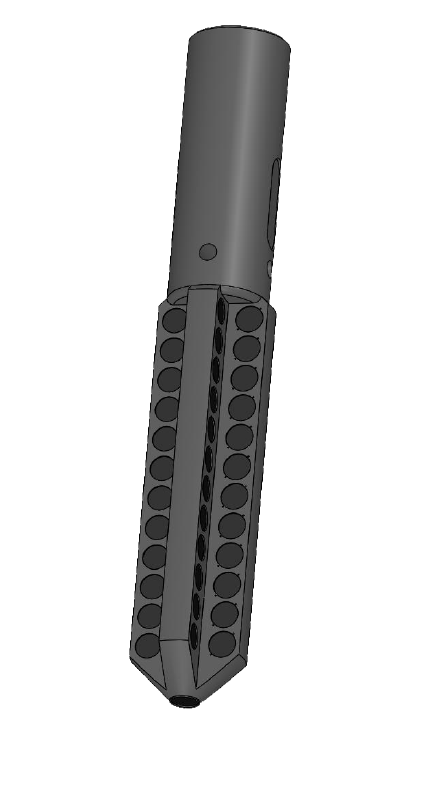

Model XWP 33 23PD
XWP magnet designed for pressure deployment operations.
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 3.3 | Body material: AISI 4145 | Connection: 2 3/8” PAC DSI box |
| Min ID (inch): N/A | Tensile yield strength (lbs): 201000 | Circulating ports (ea x Ø mm): 4x12.7 |
| Fish neck OD (inch): 2 7/8 | Tensile yield strength (mt): 91 | Max rotation (rpm): Do not rotate with WOB |
| Length (mm): 507 | Sour service resistant: No | Rec’d make-up torque (ft-lbs): 2400 |
| Weight (kg): 10 | Magnet ribs (ea): 4 |
