String Magnets

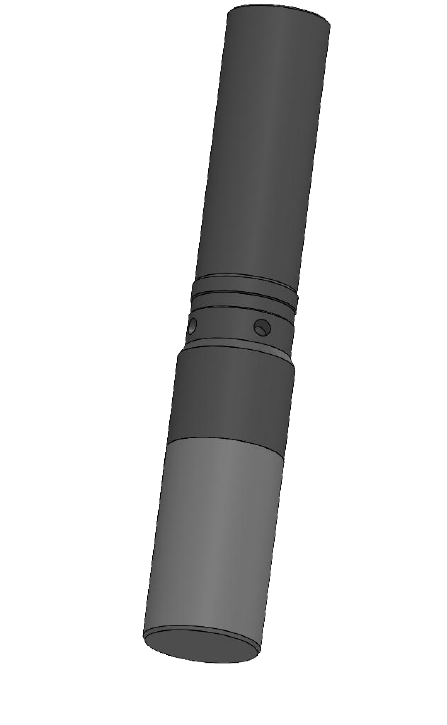

Model FMP 33ss 23PD
Flat bottom fishing magnet with vortex circulation ports. Can be shielded for transportation by helicopter.
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 3.3 | Body material: AISI 4140 | Connection: 2 3/8” PAC DSI box |
| Min ID (inch): N/A | Tensile yield strength (lbs): 151000 | Circulating ports (ea x Ø mm): 4x12 |
| Fish neck OD (inch): 2.97 | Tensile yield strength (mt): 68 | Max rotation (rpm): Do not rotate with WOB |
| Length (mm): 465 | Sour service resistant: Yes | Full face lifting capacity (kg): Up to 320 |
| Weight (kg): 15 | Point lifting capacity (kg): Up to 240 | |
| Rec’d make-up torque (ft-lbs): 2400 |
