String Magnets

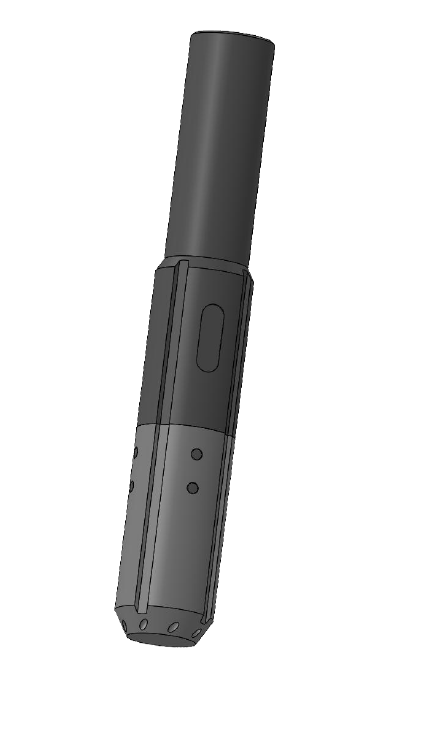

Model FMP 34C 23PD
Fishing magnet pack for completion and cleanout.
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 3 3/8 | Body material: AISI 4140 | Connection: 2 3/8” PAC DSI |
| Min ID (inch): N/A | Tensile yield strength (lbs): 201000 | Circulating ports (ea x Ø mm): 8 x 6 |
| Fish neck OD (inch): 2 7/8 | Tensile yield strength (mt): 91 | Max rotation (rpm): Do not rotate with WOB |
| Length (mm): 533 | Sour service resistant: No | Full face lifting capacity (kg): Up to 125 |
| Weight (kg): 18 | Point lifting capacity (kg): Up to 106 | |
| Rec’d make-up torque (ft-lbs): 3250 |
