String Magnets

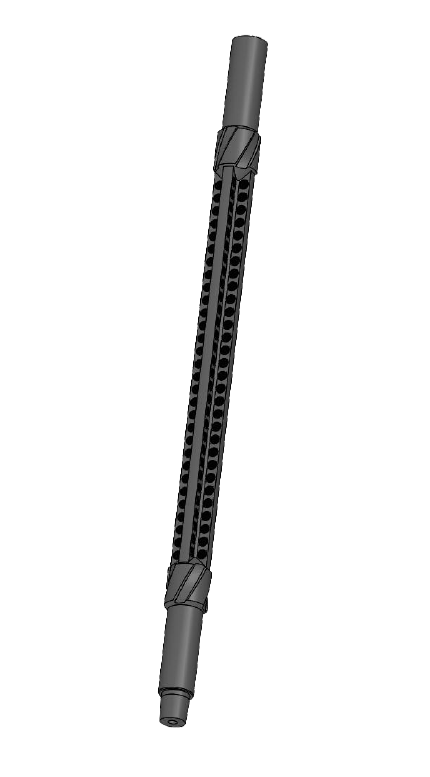

Model IMX 35 23PD
For cleaning out 4,5” & 5” liner/ casing .
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 3.5 | Body material: AISI 4145 | Flow by area (sq.in): 3.4 |
| Min ID (inch): 0.75 | Tensile yield strength (lbs): 199000 | Connection: 2 3/8” PAC DSI p x b |
| Fish neck OD (inch): 2 7/8 | Tensile yield strength (mt): 90 | Max rotation (rpm): 150 |
| Length (mm): 1500 | Torsional yield strength (ft-lbs): 3700 | Swarf capacity (kg): 6 |
| Weight (kg): 38 | Torsional yield strength (Nm): 5000 | Rec’d make-up torque (ft-lbs): 3250 |
| Magnet ribs (ea): 4 |
