String Magnets

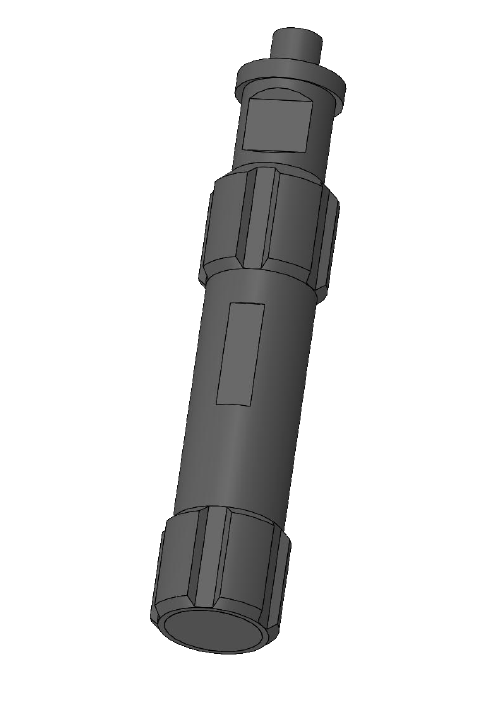

Model FM 106L
For w ireline , with 15/16” SR pin connection.
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 2.75 | Body material: AISI 4145 | Connection: 15/16” SR pin |
| Min ID (inch): N/A | Tensile yield strength (lbs): 33000 | Full face lifting capacity (kg): Up to 56 |
| Fish neck OD (inch): 2.31 | Tensile yield strength (mt): 15 | |
| Length (mm): 280 | Guide wheels: No | |
| Weight (kg): 6.3 | Sour service resistant: No |
