String Magnets

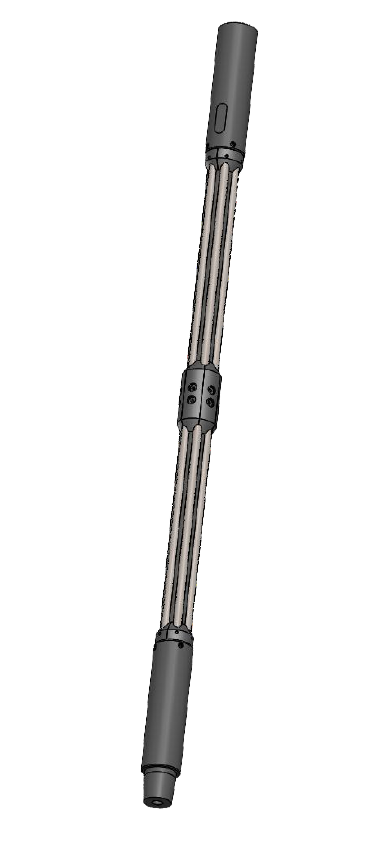

Model IM 29L HD 23PD
Slim heavy-duty Innomag for restricted ID tubing.
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 2 7/8 | Body material: AISI 4145 120 ksi | Flow by area (sq.in) inside 4.5”: 5.8 |
| Min ID (inch): 3/4 | Sour service resistant: No | Flow by area (sq.in) inside 4”: 3.0 |
| Fish neck OD (inch): 2 7/8 | Tensile yield strength (lbs): 149000 | Connection: 2 3/8” PAC DSI p x b |
| Length (mm): 1500 | Tensile yield strength (mt): 68 | Max rotation (rpm): 150 |
| Weight (kg): 32 | Torsional yield strength (ft-lbs): 3524 | Swarf capacity (kg) inside 4.5”: 9 |
| Torsional yield strength (Nm): 4780 | Swarf capacity (kg) inside 4”: 6 | |
| Magnet ribs (ea): 6 | Rec’d make-up torque (ft-lbs): 3250 |
