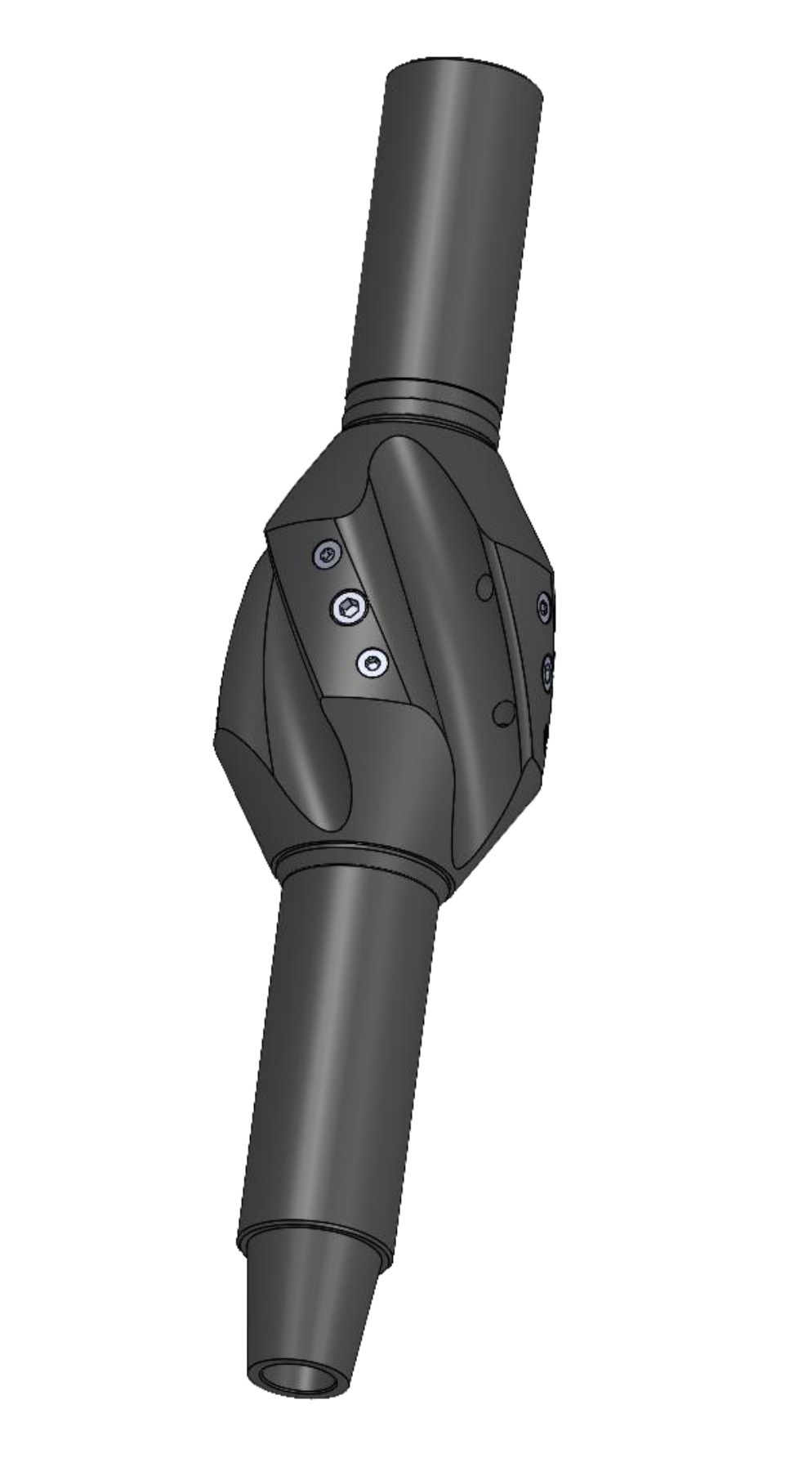

Model WT 100
Vortex inducing BOP cleaning tool for 18 ¾” BOP.
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 13 3/8 | Body material: AISI 4145 | Connection: NC 50 pin x box |
| Min ID (inch): 3.0 | Tensile yield strength (lbs): 1298000 | Circulating ports (ea x Ø mm): 8x24 |
| Fish neck OD (inch): 6 3/8 | Tensile yield strength (mt): 590 | Circ port TFA (sq.in): 5.6 |
| Length (mm): 1300 | Torsional yield strength (ft-lbs): 46000 | Max pump rate (lpm): 5500 |
| Weight (kg): 280 | Sour service resistant: No | Rec’d make-up torque (ft-lbs): 27000 |
