String Magnets

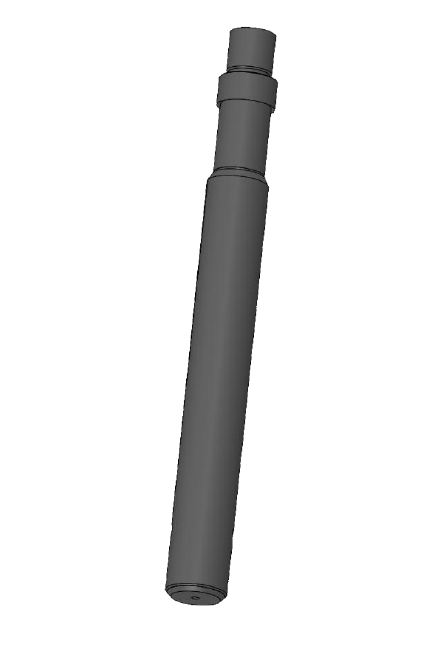

Model FM 129
Can be shielded for transportation by helicopter.
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 1.8 | Body material: 4145 110ksi | Connection: 15/16” SR pin |
| Min ID (inch): N/A | Tensile yield strength (lbs): 33000 | Lifting capacity nose magnet (kg): Up to 22 |
| Roller wheels OD (inch): N/A | Tensile yield strength (mt): 15 | |
| Fish neck OD (inch): 1.05 | Sour service resistant: No | |
| Length (mm): 325 | ||
| Weight (kg): 3 |
