String Magnets

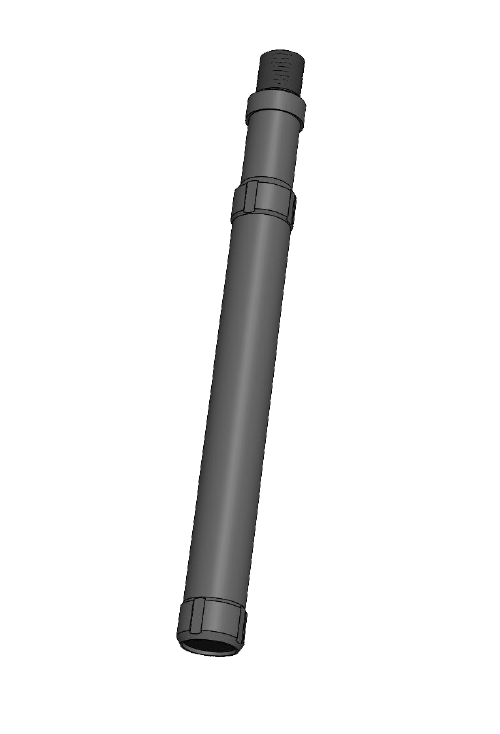

Model FM 120
For w ireline , with 15/16 SR pin connection.
| Dimensional data | Mechanical properties | Operational data |
|---|---|---|
| Max OD (inch): 1.25 | Body material: SS 2377 Duplex | Connection: 15/16” SR pin |
| Min ID (inch): N/A | Tensile yield strength (lbs): 33000 | Full face lifting capacity (kg): Up to 15 |
| Fish neck OD (inch): 1.18 | Tensile yield strength (mt): 15 | |
| Length (mm): 293 | Guide wheels: No | |
| Weight (kg): 2 | Sour service resistant: No |
